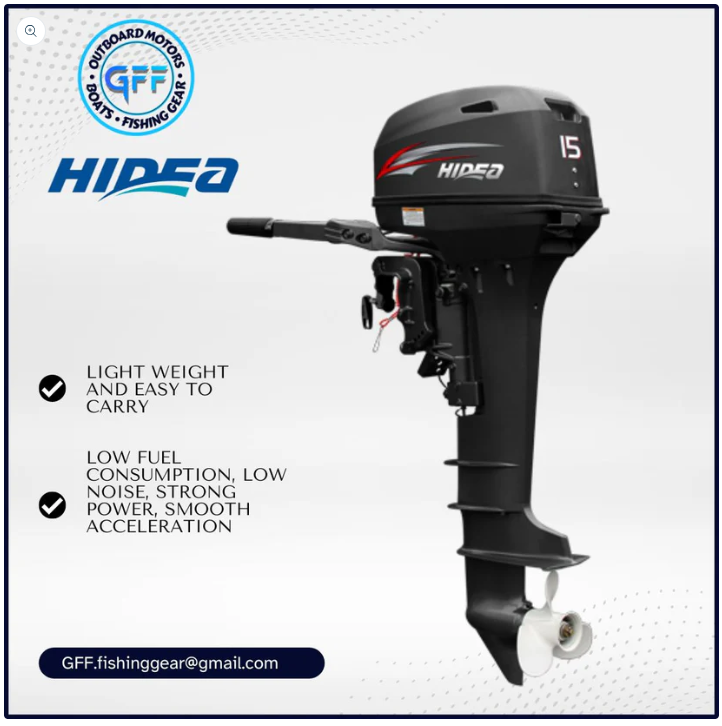

Hidea 15HP 2-stroke HD15F Outboard Motor
Couldn't load pickup availability
The HD15F is a standout in Hidea’s portable range and has proven to be one of customers favourite outboards. Light weight and easy to transport the HD15F has a reputation built on years of reliable and powerful performance.
For boaters who want to cruise to their favourite fishing spot with speed and confidence, the HD15F is the perfect motor.
◇ Light weight and easy to transport
◇ Great for car toppers, small fishing rigs, inflatables and tenders
◇ High grade marine aluminum alloy that provides the ultimate protection against corrosion
◇ CDI ignition provides automatic spark advance to provide maximum power throughout the whole RPM range
◇ Loop charging boosts power and fuel efficiency
◇ Comes standard with shallow water drive, an extremely useful feature when tackling rivers, estuaries and creeks.
◇ Truly six layers of paint, good corrosion resistance.
◇ Using the US brand PPG paint, more beautiful exterior.
Available in:
◇ HD15FHS - Manual Start, Tiller Handle, Transom height – Short shaft
◇ HD15FHL - Manual Start, Tiller Handle, Transom height – Long shaft
General Features:
◇ Pre mix 50:1
◇ 24 L Fuel tank & hose
◇ Shallow water drive
| Specification Model | HD15F |
| Max.Output(kw) | 11 |
| Full Throttle Operating Range(rpm) | 4500-5500 |
| Stroke | 2 |
| Cylinder | 2 |
| Displacement(cc) | 246 |
| Bore×Stroke(mm) | 56×50 |
| Length×Width×Height (mm) | S:873×332×1040 L:873×332×1167 |
| Length×Width×Height (inch) | S:34.4×13.1×40.9 L:34.4×13.1×45.9 |
| Weight(kg) | S:38.8 L:40 |
| Weight(lb) | S:86 L:88 |
| Transom Height(mm) | S:447 L:574 |
| Gear Ratio | 27:13(2.08) |
| Gear Shift Position | F-N-R |
| lgnition System | CDI |
| Cooling System | Water-cooling |
| Starting System | Manual |
| Control System | Rear operation |
| Lubrcation System | Gasoline & Machine Oil |
| Regular Gasoline | 50:1 |
| Capacity of Fuel Tank(L) | 24 |
