Hidea

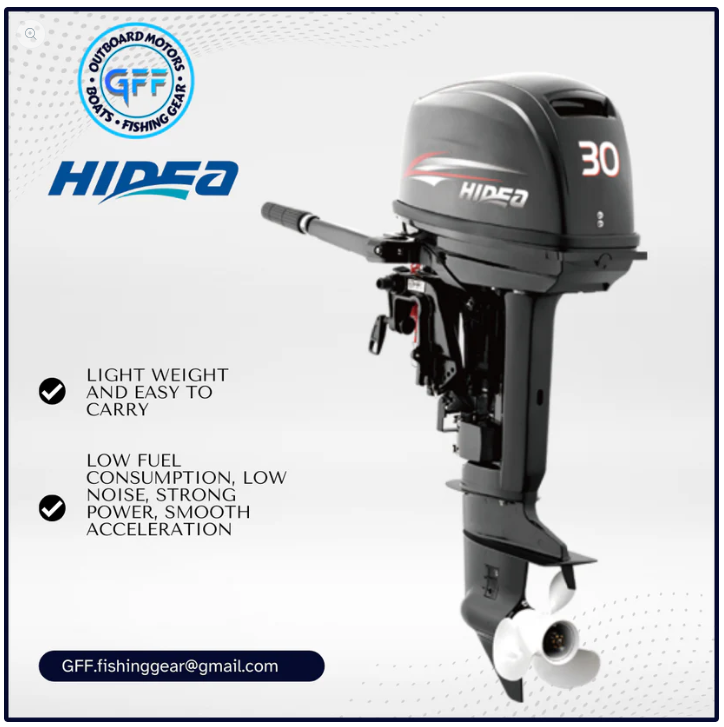

Hidea 30HP 2-stroke HD30F Outboard Motor
Couldn't load pickup availability
Excellent reliability with proven 2-stroke technology simple in design, Loop charged induction for smooth operation and fuel economy, CD ignition system for quicker starts, Remote control and electric start on select HD30F models
◇ Through-the-prop exhaust for a quiet ride
Thermostatically controlled cooling system for consistent engine temperature
◇ Stainless steel water pump housing for outstanding durability
◇ High grade marine aluminum alloy that provides the ultimate protection against corrosion
◇ Zinc coating on internal water passages for superior corrosion resistance
◇ 24ltr Fuel Tank, fittings and fuel hose
◇ Shallow water drive
◇ Alternator fitted, add optional rectifier kit to charge battery on manual model (standard on Electric start models)
◇ Truly six layers of paint, good corrosion resistance.
◇ Using the US brand PPG paint, more beautiful exterior.
◇ High-power outboard motor Top cowling add cotton insulation, reduce the noise effectively.
Available in
◇ HD30FHS - Manual Start, Tiller Handle, Transom height – Short shaft
◇ HD30FHL - Manual Start, Tiller Handle, Transom height – Long shaft
◇ HD30FHES-Electric start, Tiller handle, Transom height-Short shaft
◇ HD30FHEL-Electric start, Tiller handle, Transom height-Long shaft
◇ HD30FFES-Electric start, Remote control, Transom height-Short shaft
◇ HD30FFEL-Electric start, Remote control, Transom height-Long shaft
| Specification Model | HD30F |
| Max.Output(kw) | 22.1 |
| Full Throttle Operating Range(rpm) | 4500-5500 |
| Stroke | 2 |
| Cylinder | 2 |
| Displacement(cc) | 496 |
| Bore×Stroke(mm) | 72×61 |
| Length×Width×Height (mm) | S:843×399×1146 L:843×399×1273 |
| Length×Width×Height (inch) | S:33.2×15.7×45.1 L:33.2×15.7×50.1 |
| Weight(kg) | S:53 L:57 |
| Weight(lb) | S:117 L:126 |
| Transom Height(mm) | S:441 L:568 |
| Gear Ratio | 27:13(2.08) |
| Gear Shift Position | F-N-R |
| lgnition System | CDI |
| Cooling System | Water-cooling |
| Starting System | Manual / Electric start |
| Control System | Rear / Front operation |
| Lubrcation System | Gasoline / Machine Oil |
| Regular Gasoline | 50:1 |
| Capacity of Fuel Tank(L) | 24 |
