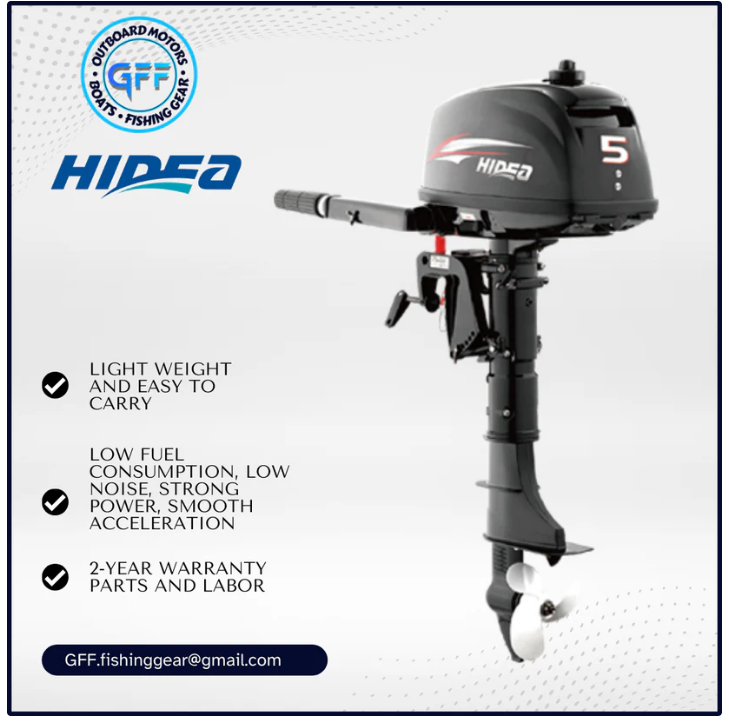

Hidea 5HP 2-stroke HD5F Outboard Motor
Couldn't load pickup availability
Built lightweight and compact, this portable HD5F two stroke has been designed, so you can take it absolutely anywhere. The convenience of a built in fuel tank makes fitting the engine a breeze and Hidea’s legendary reliability means you can cruise to your favourite fishing spot with absolute confidence.
◇ Light weight and easy to transport
◇ Great for car toppers, small fishing rigs, inflatables and tenders
◇ Comes standard with shallow water drive, an extremely useful feature when tackling rivers, estuaries and creeks.
◇ Truly six layers of paint, good corrosion resistance.
◇ Using the US brand PPG paint, more beautiful exterior.
◇ anti-watergrass design, Truly without wrapped water grass.
Available in:
◇ HD5FHS - Manual Start, Tiller Handle, Transom height – Short shaft
◇ HD5FHL - Manual Start, Tiller Handle, Transom height – Long shaft
General Features:
◇ Pre mix 50:1
◇ 2.5 L Built-in fuel tank
◇ 360 Steering
◇ F-N-R Shift
◇ Shallow water drive
◇ Thermostat cooling
◇ Splined prop shaft
| Specification Model | HD5F |
| Max.Output(kw) | 3.7 |
| Full Throttle Operating Range(rpm) | 4500-5500 |
| Stroke | 2 |
| Cylinder | 1 |
| Displacement(cc) | 102 |
| BorexStroke(mm) | 55x43 |
| Length×Width×Height (mm) | S:700×300×1010 L:700×300×1137 |
| Length×Width×Height (inch) | S:27.6×11.8×39.8 L:27.6×11.8×44.8 |
| Weight(kg) | S:21 L:23 |
| Weight(lb) | S:46 L:51 |
| Transom Height(mm) | S:435 L:575 |
| Gear Ratio | 27:13 (2.08) |
| Gear Shift Position | F-N-R |
| lgnition System | CDI |
| Cooling System | Water-cooling |
| Starting System | Manual |
| Control System | Rear operation |
| Lubrcation System | Gasoline & Machine Oil |
| Regular Gasoline | 50:1 |
| Capacity of Fuel Tank(L) | 2.5 |
