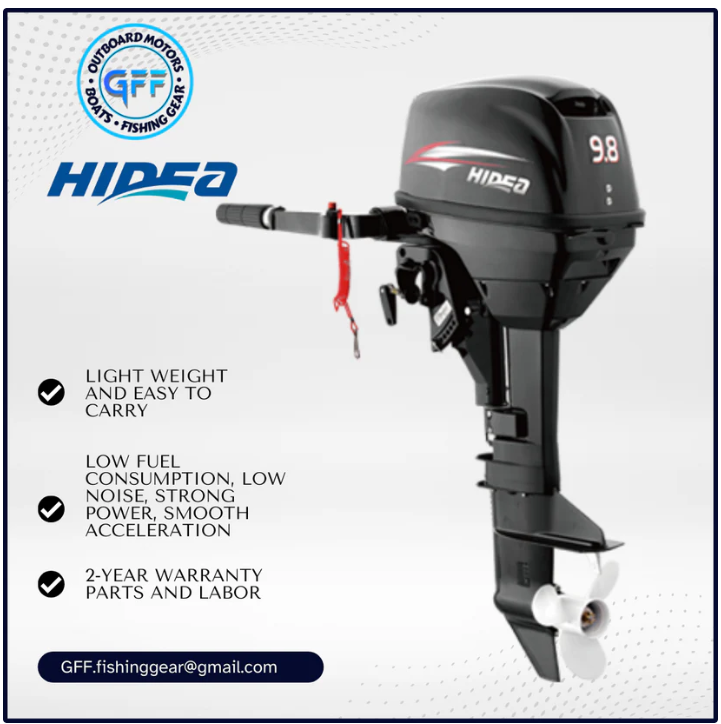

Hidea 9.8HP 2-stroke HD9.8F Outboard Motor
Couldn't load pickup availability
An extremely versatile engine that suits a range of applications. The HD9.8F is light enough to be a great portable engine but also has enough power to push you along at a pleasant cruising speed.
Great fuel economy as well as reliability that is second to none makes this engine a top seller.
◇ Light weight and easy to transport.
◇ Standard alternator allows you to run a spotlight.
◇ Great for car toppers, small fishing rigs, inflatables and tenders
◇ CDI ignition provides automatic spark advance to provide maximum power throughout the whole RPM range
◇ Comes standard with shallow water drive, an extremely useful feature when tackling rivers, estuaries and creeks.
◇ Truly six layers of paint, good corrosion resistance.
◇ Using the US brand PPG paint, more beautiful exterior.
Available in:
◇ HD9.8FHS - Manual Start, Tiller Handle, Transom height – Short shaft
◇ HD9.8FHL - Manual Start, Tiller Handle, Transom height – Long shaft
General Features:
◇ Pre mix 50:1
◇ 21 L Fuel tank & hose
◇ Shallow water drive
◇ Lighting coil
◇ Thermostat cooling
◇ Shift handle
| Specification Model | HD9.8F |
| Max.Output(kw) | 7.2 |
| Full Throttle Operating Range(rpm) | 4500-5500 |
| Stroke | 2 |
| Cylinder | 2 |
| Displacement(cc) | 169 |
| BorexStroke(mm) | 50x43 |
| Length×Width×Height (mm) | S:793×320×996 L:793×320×1123 |
| Length×Width×Height (inch) | S:31.2×12.6×39.2 L:31.2×12.6×44.2 |
| Weight(kg) | S:26 L:27 |
| Weight(lb) | S:57 L:60 |
| Transom Height(mm) | 441 |
| Gear Ratio | 27:13(2.08) |
| Gear Shift Position | F-N-R |
| lgnition System | CDI |
| Cooling System | Water-cooling |
| Starting System | Manual |
| Control System | Rear operation |
| Lubrcation System | Gasoline & Machine Oil |
| Regular Gasoline | 50:1 |
| Capacity of Fuel Tank(L) | 12 |
